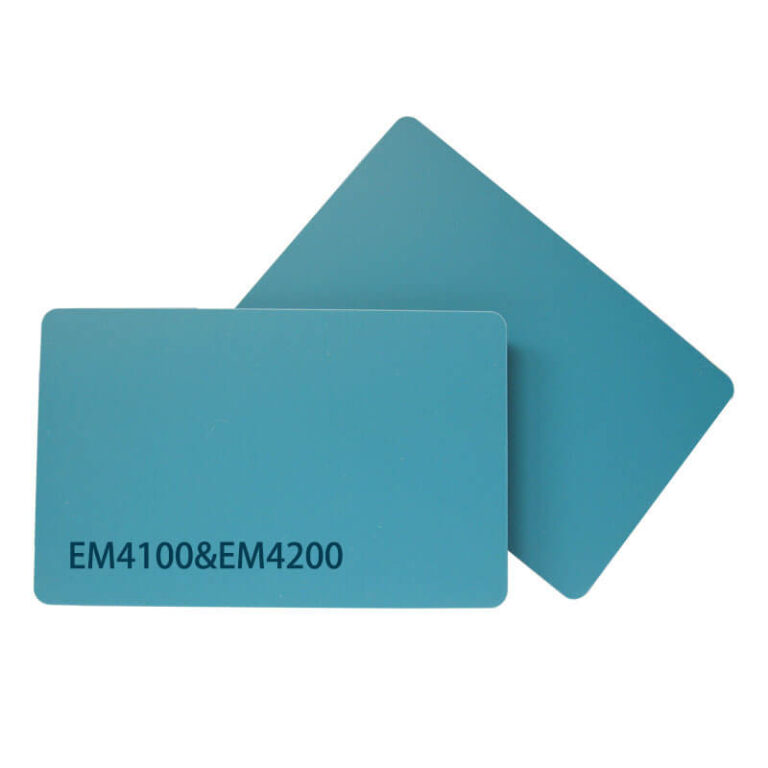

125kHz EM4100&EM4200 RFID Card

125kHz EM4100&EM4200 RFID Card

The EM4100 proximity card uses a frequency of 100 kHz to 150 kHz. Each EM proximity card has a unique serial number. The EM4100 is perfect for access control and time attendance systems, and it doesn't need a high level of security. The EM chip is compatible with the ISO 11784/11785 standard chip and the ISO FDX/B animal identification standard. This means that the chip can be used in many different application management systems, especially for animal identification and tracking. We provide blank cards and pre-printed cards.
Product Details

Features

  • 64-bit memory array laser programmable
  • Several options of data rate and coding available
  • On chip resonance capacitor
  • On-chip supply buffer capacitor
  • On chip voltage limiter
  • Full wave rectifier on chip
  • Large modulation depth due to a low impedance modulation device
  • Operating frequency 100 – 150 kHz, (125kHz)
  • Very small chip size convenient for implantation
  • Very low power consumption

Specification

MaterialPVC,PET,ABS
Size85.5*54*0.84mm
Optional chipEM4100,EM4102,EM4200,EM4305,EM4450 etc.
Memory64bits Read-only memory (10HEX serial number)
Frequency125 kHz
ProtocolISO 111784/11785
Reading distance0-5m
Working Temperature-40° to +85°C (-40° to +185°F)

Applications

  • Logistics automation
  • Anticounterfeiting
  • Access control
  • Industrial transponder
